<table>
<tr>
<th>MODEL</th>

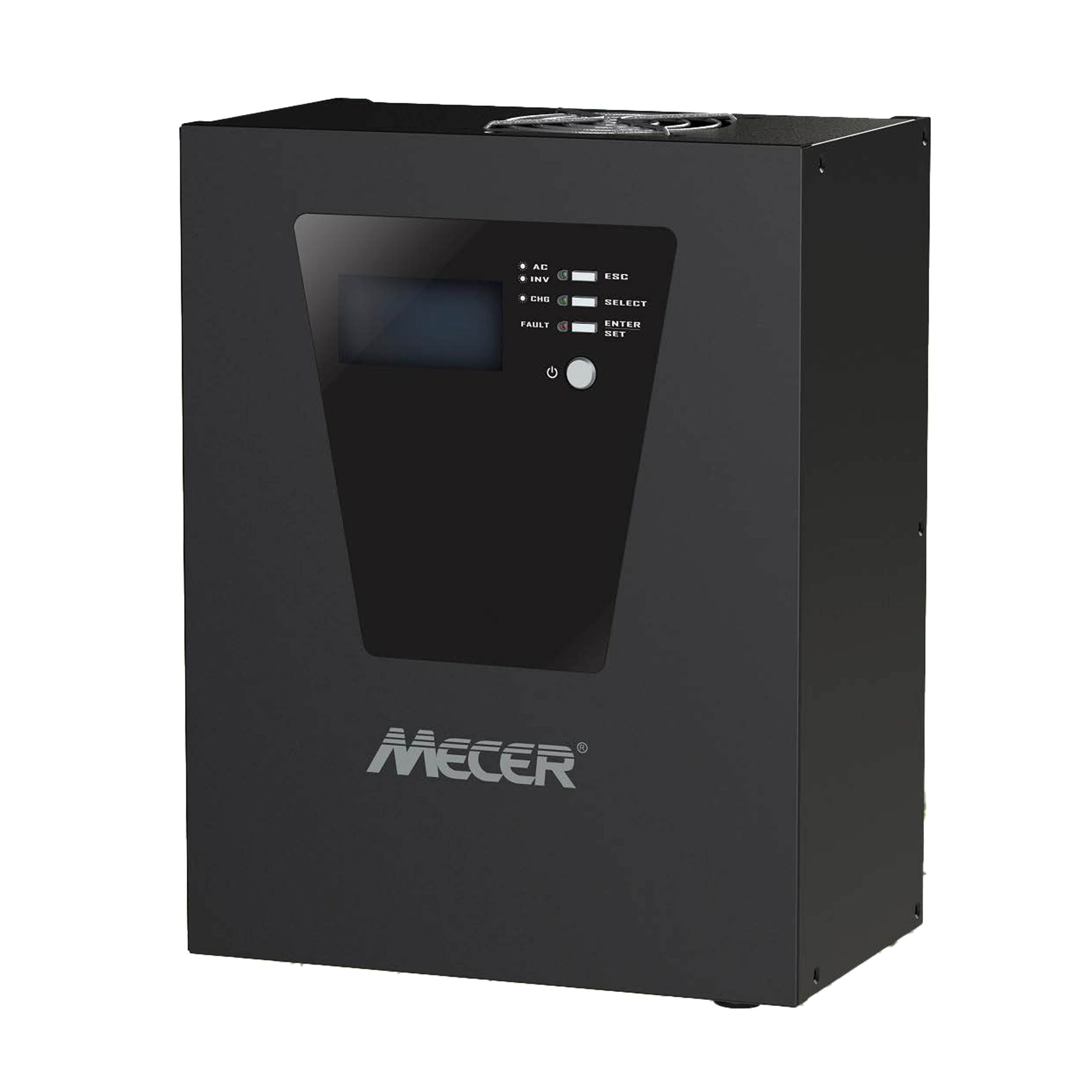

<td>IVR-1200MPPT</td>
<td>IVR-2400MPPT</td>
</tr>
<tr>
<th>CAPACITY</th>
<td>1200VA/1000W</td>
<td>2400VA/1800W</td>
</tr>
<tr>
<th>POWER FACTOR</th>
<td>0.83</td>
<td>0.75</td>
</tr>
<tr>
<th colspan=”3″>INPUT</th>
</tr>
<tr>
<th>Voltage</th>
<td colspan=”2″>220-240 VAC</td>
</tr>
<tr>
<th>Voltage Range</th>
<td colspan=”2″>90-280 VAC</td>
</tr>
<tr>
<th>Nominal Operating Frequency</th>
<td colspan=”2″>50/60Hz</td>
</tr>
<tr>
<th>Maximum Input Current</th>
<td>10A</td>
<td>13A</td>
</tr>
<tr>
<th colspan=”3″>OUTPUT</th>
</tr>
<tr>
<th>Nominal Output Voltage</th>
<td colspan=”2″>220-240 VAC</td>
</tr>
<tr>
<th>Voltage Regulation (Batt. Mode)</th>
<td colspan=”2″>+/-10%</td>
</tr>
<tr>
<th>Output Frequency Range</th>
<td colspan=”2″>50/60Hz</td>
</tr>
<tr>
<th>Nominal Output Current</th>
<td>5.2A</td>
<td>10.4A</td>
</tr>
<tr>
<th>Inrush Current</th>
<td>10A</td>
<td>13A</td>
</tr>
<tr>
<th>Maximum Output Fault Current</th>
<td>6.9A</td>
<td>13.6A</td>
</tr>
<tr>
<th>Transfer Time</th>
<td colspan=”2″>20 ms typical</td>
</tr>
<tr>
<th>Waveform</th>
<td colspan=”2″>Simulated Sine Wave</td>
</tr>
<tr>
<th colspan=”3″>BATTERY</th>
</tr>
<tr>
<th>Battery Voltage</th>
<td>12 VDC</td>
<td>24 VDC</td>
</tr>
<tr>
<th>Maximum Battery Discharging Current</th>
<td>100A</td>
<td>90A</td>
</tr>
<tr>
<th>Floating Charge Voltage</th>
<td>13.7 VDC ±0.5 VDC</td>
<td>27.4 VDC ±1 VDC</td>
</tr>
<tr>
<th rowspan=”2″>CV Charging Voltage</th>
<th>Lead Acid Battery</th>
<td>14.3 VDC ±0.5 VDC</td>
<td>28.6 VDC ±1 VDC</td>
</tr>
<tr>
<th>Lithium Battery</th>
<td>14.6 VDC ±0.5 VDC</td>
<td>29.2 VDC ±1 VDC</td>
</tr>
<tr>
<th>Cut Off Voltage</th>
<td>10.5 VDC ±0.5 VDC</td>
<td>21.0 VDC ±1 VDC</td>
</tr>
<tr>
<th>Maximum AC Charging Current</th>
<td>10 A or 25 A</td>
<td>10 A or 25 A</td>
</tr>
<tr>
<th colspan=”3″>SOLAR CHARGER</th>
</tr>
<tr>
<th>Solar Charger Type</th>
<td colspan=”2″>MPPT</td>
</tr>
<tr>
<th>Maximum PV Array Open Circuit Voltage</th>
<td colspan=”2″>100 VDC</td>
</tr>
<tr>
<th>MPP Range @ Operating Voltage</th>
<td>15 ~ 80 VDC</td>
<td>30 ~ 80 VDC</td>
</tr>
<tr>
<th>Max. PV array Input Power</th>
<td>825W</td>
<td>1650W</td>
</tr>
<tr>
<th>Max. PV array Power to support</th>
<td>660W</td>
<td>1320W</td>
</tr>
<tr>
<th>Maximum Solar Charging Current</th>
<td>55 A</td>
<td>55 A</td>
</tr>
<tr>
<th>Maximum Charging Current (Utility +SCC)</th>
<td>55 A</td>
<td>55 A</td>
</tr>
<tr>
<th colspan=”3″>PHYSICAL</th>
</tr>
<tr>
<th>Dimension (DxWxH) mm</th>
<td colspan=”2″>272 x 212 x 127</td>
</tr>
<tr>
<th>Net Weight (kgs)</th>
<td>4.5</td>
<td>4.8</td>
</tr>
<tr>
<th>Protective Class</th>
<td colspan=”2″>I</td>
</tr>
<tr>
<th>Ingress Protection Rating</th>
<td colspan=”2″>IP20</td>
</tr>
<tr>
<th colspan=”3″>ENVIRONMENT</th>
</tr>
<tr>
<th>Humidity</th>
<td colspan=”2″>0 ~ 90% RH (No condensing)</td>
</tr>
<tr>
<th>Operating Temperature</th>
<td colspan=”2″>0 ~ 55°C</td>
</tr>
<tr>
<th>Altitude</th>
<td colspan=”2″>0 ~ 1000 m</td>
</tr>
</table>
